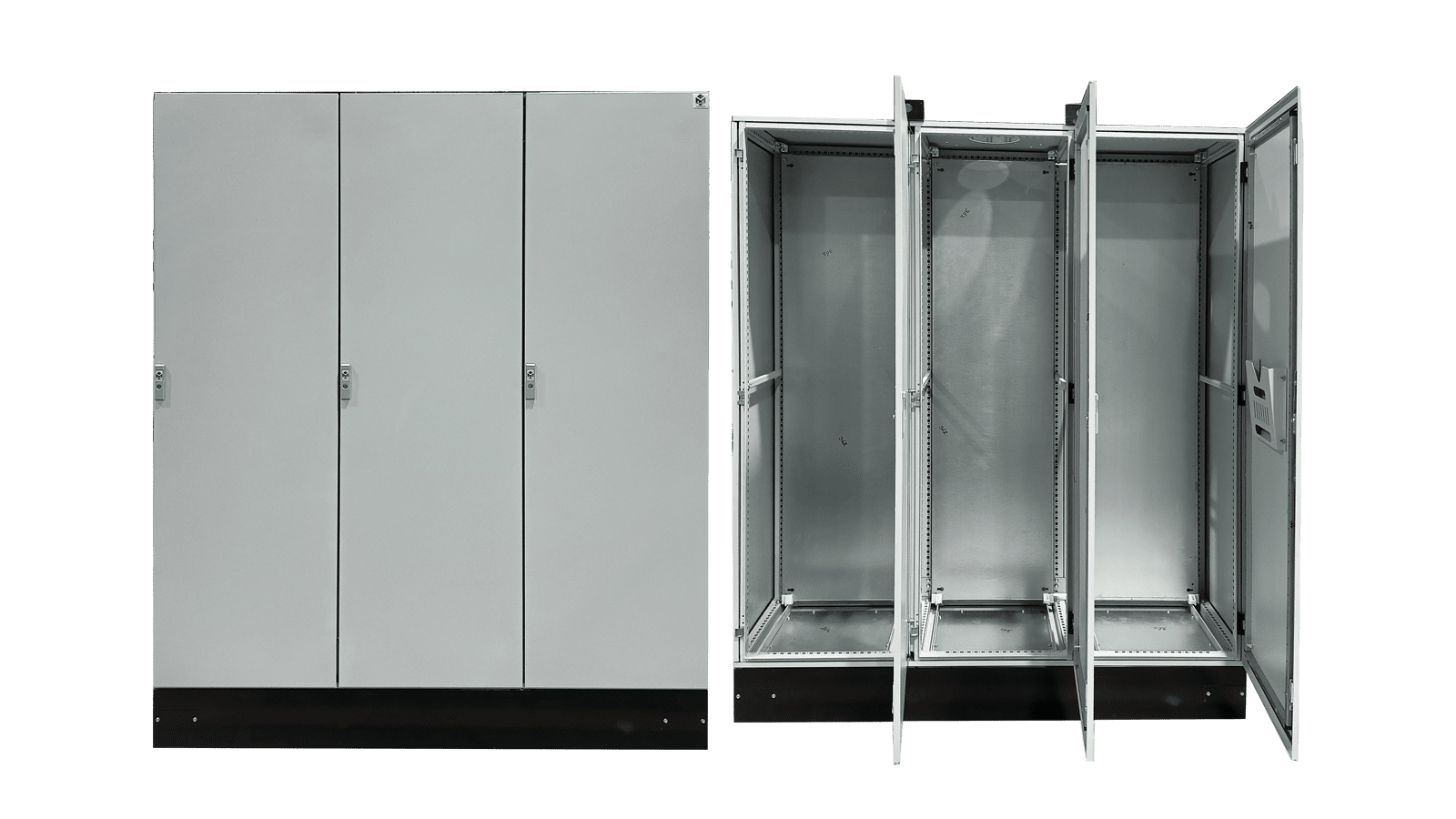

Nine-Fold
- Specially designed nine-fold frame with 1.5mm thickness galvanized rolled section.
- Pre punched holes are in uniform 25mm x 12.5mm universal pitch pattern.
- Material: Mild steel(IS 513_part 1)/ Stainless steel(SS-304/316)
- Protection – upto IP55.
- Single door arrangement – upto 800mm.
- Double door arrangement – above 800mm.
- Front and rear interchangeable door.
- Double-front door
- Foamed-in PU Gasket.
- Flexible internal mounting.
- 9 tank pre-treated powder coating.
- Customized solution – size, colour, locking arrangement and window doors.
Size:
| Width(mm) | Height(mm) | Depth(mm) | Thickness(mm) |
| 400 – 1200 | 1600 – 2200 | 400 – 1200 | 1.6, 2 |
| In step of 50 | |||
